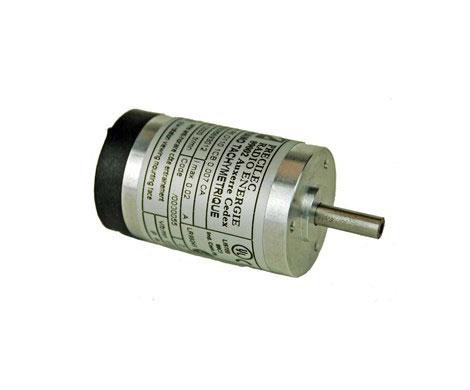

- Permanent magnet excitation
– Armature with frontal commutator
– 2 external terminals connection, used as brushes-support
– Tapped holes fixation – B14
– E.M.F. 1000 rt/mn: 2V to 7V
– C.A. brushes
– IP44
– General use
– Reduced size
– Very small dimensions
REO 110

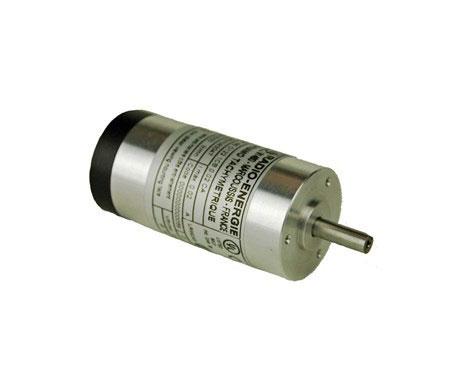

- Permanent magnet excitation
– Armature with frontal commutator
– 2 external terminals connection, used as brushes-support
– Tapped holes fixation – B14
– E.M.F. 1000 rt/mn: 8V to 20V
– C.A. brushes
– IP44
– General use
– Reduced size
– Very small dimensions
REO 122
– Tachymetric Dynamo reduced size
– Permanent magnet excitation
– Outgoing cables connection
– Brushes accessible from the outside
– Tapped holes fixation – B14
– E.M.F. 1000 rt/mn: 5V to 12V
– C.A. brushes
– IP44
– General use
– Small dimensions

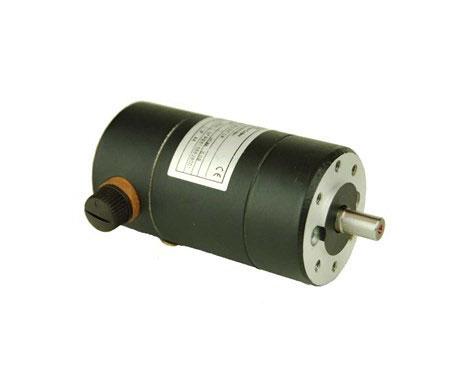

REO 220

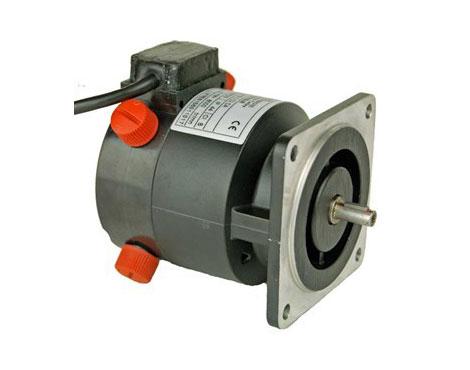

– Terminal box or cable
– Magnetic circuit designed for current industrial applications
– Flange connection only
– E.M.F. 1000 rt/mn: 7V to 60V
– C.A. or E.G. brushes
– IP44 or IP55
- Industrial use
– Speed control and regulation
REO 315L

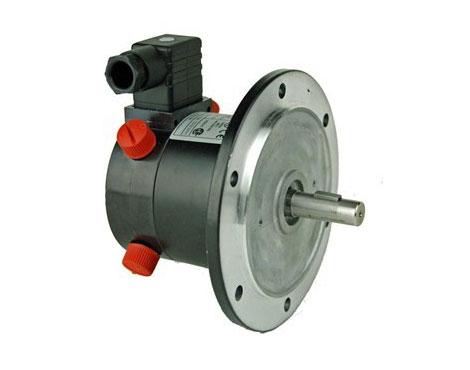

- Reduced size
– Connector connection
– E.M.F. 1000 rt/mn: 60V
– C.A. or E.G. brushes
– IP44 or IP55
- Industrial use
– Speed control and regulation

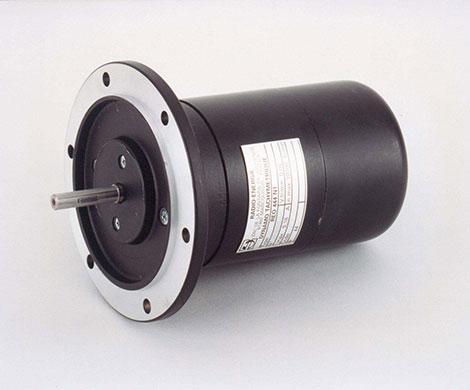

REO 444L
- Most common tachymetric dynamo
– Permanent magnet excitation
– Brushes support under the hood
– Outgoing cable connection
– Low ripple rate
– 1 or 2 commutators
– B3 or B5 mount
– E.M.F. 1000 rt/mn: 6V to 200V
– C.A. or E.G. brushes
– IP44 or IP55
- Industrial use
– Speed control and regulation
REO 444N

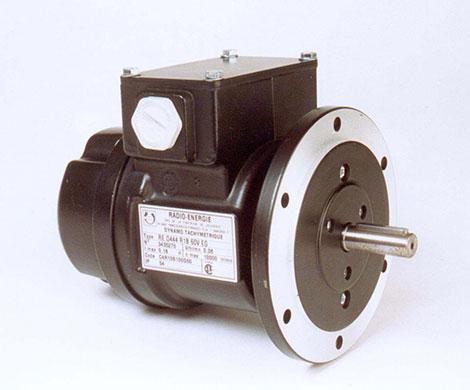

– High-quality signal
– Terminal box connection
– Possibility to mechanically combine with encoder, or centrifugal switch (Combino)
– 1 or 2 collectors
– B3, B5 or B35 mount
– E.M.F. 1000 rt/mn: 6V to 200V
– C.A. or E.G. brushes
– IP54 ou IP56
- Industrial use
– Speed control and regulation
REO 444R
– Model derived from REO 444R, except adapted to railway conditions (embedded material)
– Only flanged version, only 1 commutator
- Railway equipment

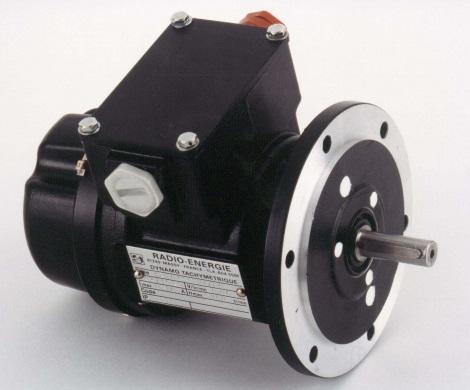

REO 444SR

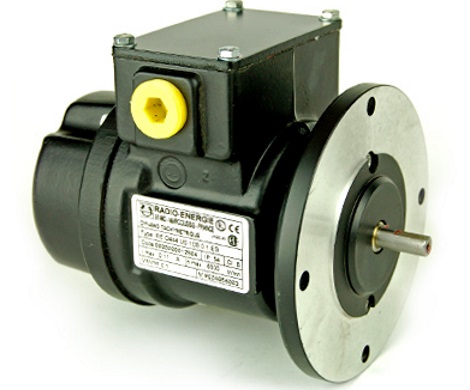

– Model derived from REO 444R, but adapted to North American business
– UL & CSA approved
- Industrial use
– Speed control and regulation
REO 444US
- Low ripple rate tachymetric dynamo
– Permanent magnet excitation
– Terminal box connection
– 1 or 2 collectors
– B3, B5 or B35 mount
– E.M.F. 1000 rt/mn: from 30V to 1000V
– C.A. or E.G. brushes
– IP54 or IP56
– Industrial use
– Low-speed use

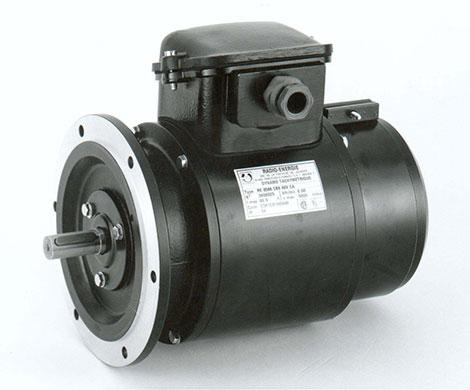

REO 588

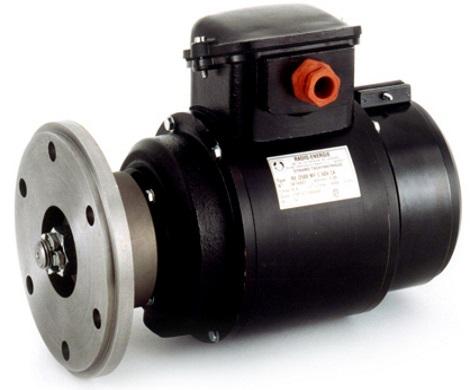

- Model derived from our REO 588 tachymetric dynamo
– Reinforced mechanic
– Direct connection on the shaft
– Industrial use
– Low-speed use
REO 588MF
– Model derived from REO 588 tachymetric dynamo
– Reinforced construction
– Waterproof
– Very robust
– Only flanged version with only 1 collector
– Difficult railway conditions
– Embedded railway material

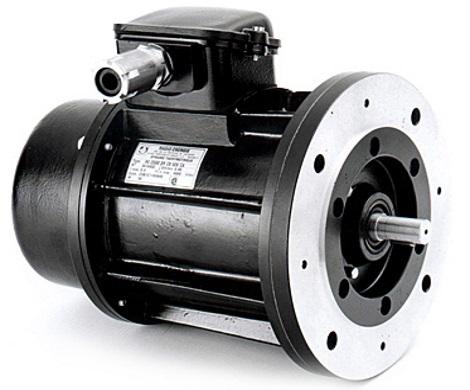

REO 588SR
- Model derived from the tachymetric dynamo
– Adapted to North American business
– Only 1 collector
– UL & CSA approved model
- Industrial use
REO 588US
- We can reproduce the exact same product on request.
– Industrial use
– Heavy industrial use
– Low-speed use
– Very low-speed use
– REO 695
– REO 695F
– REO 703 & 733
– REO 703 & 733MF
– REO 820
– REO 820MF

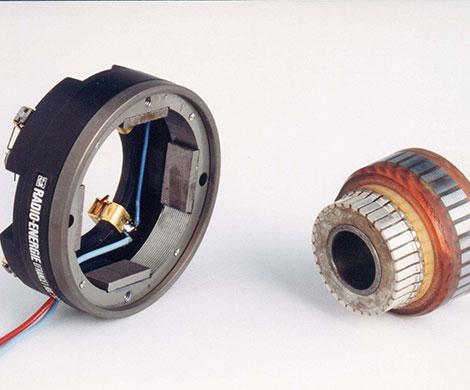

- Tachymetric Dynamo composed of rotor/stator
– Permanent magnet excitation
– Rotor mounted on smooth shaft
– Small sized
– Collector mounted on the opposite side of the connection
– Copper collector
– E.M.F. 1000 rt/mn: 2V to 10V
– Shaft diameter from 6 to 12.7mm
– IP00
– CSA Certified
- Industrial use
– Machine tool
– Robotics
RDC 205

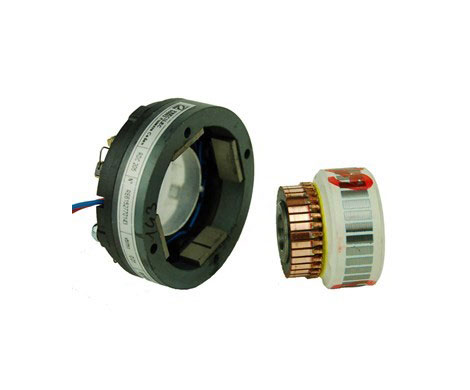

- Tachymetric Dynamo composed of rotor/stator
– Permanent magnet excitation
– Rotor mounted on smooth shaft
– Small sized
– Collector mounted on the opposite side of the connection
– Copper collector
– E.M.F. 1000 rt/mn: 10V to 20V
– Shaft diameter from 6 to 12.7mm
– IP00
– CSA Certified
– Industrial use
– Machine tool
– Robotics
RDC 206

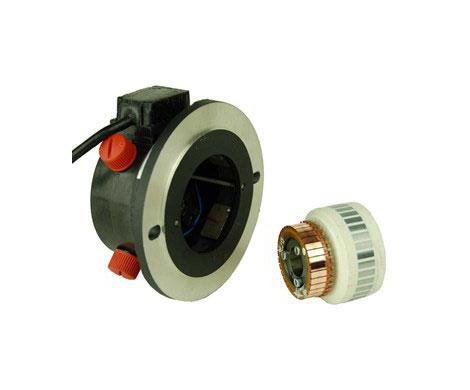

– Tachymetric Dynamo composed of rotor/stator
– Permanent magnet excitation
– Rotor mounted on keyway or smooth shaft
– E.M.F. 1000 rt/mn: 10V to 30V
– Shaft diameter from 12 to 16mm
– IP00
– Industrial use
– Machine tool
– Robotics
RDC 207
– Tachymetric Dynamo composed of rotor/stator
– Permanent magnet excitation
– Rotor mounted on keyway or smooth shaft
– E.M.F. 1000 rt/mn: 30V to 60V
– Shaft diameter from 12 to 16mm
– IP00
- Industrial use
– Machine tool
– Robotics
RDC 208

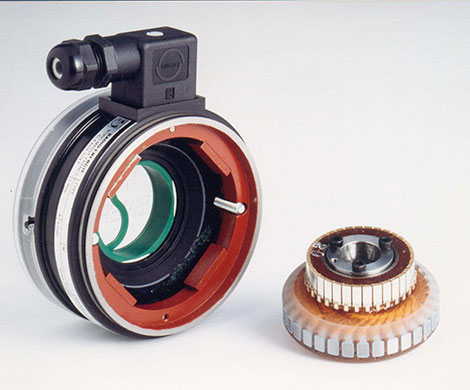

- Permanent magnet excitation
– Collector mounted on the opposite side of the connection
– Multiple manufacturing variants (IP00, IP44, IP68)
– Reduced length
– E.M.F. 1000 rt/mn: 5V to 20V
– Shaft diameter from 8 to 16mm
– CSA certified
– Industrial use
– Machine tool
– Robotics
RDC 210

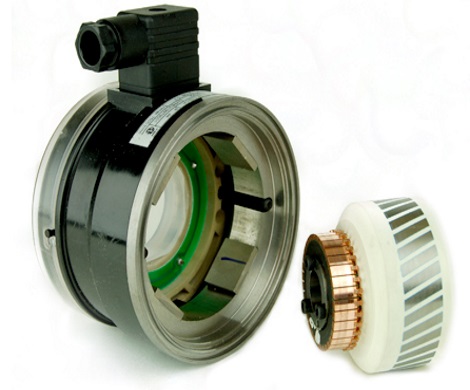

- Tachymetric Dynamo composed of rotor/stator
– Permanent magnet excitation
– Multiple manufacturing variants (IP00, IP44, IP68)
– Collector mounted on the opposite side of the connection
– E.M.F. 1000 rt/mn: 10V to 60V
– Shaft diameter from 8 to 16mm
– CSA certified
– Industrial use
– Machine tool
– Robotics
RDC 215
- Tachymetric Dynamo composed of rotor/stator
– Permanent magnet excitation
– Robust machine
– Collector mounted on the same side of the connection
– Mounted on the smooth shaft with a deformable hub
– C.A. or E.G. brushes
– E.M.F. 1000 rt/mn: 10V to 60V
– Shaft diameter from 6 to 12.7mm
– IP44
– Industrial use
– Machine tool
– Robotics
RDC 14
– Tachymetric Dynamo composed of rotor/stator (full metal)
– Permanent magnet excitation
– Collector mounted on the opposite side of the connection
– Mounted on a smooth shaft
– C.A. or E.G. brushes
– E.M.F. 1000 rt/mn: 10V to 60V
– Shaft diameter from 8 to 16mm
– MF (IP44) or ME (IP55)
- Industrial use
– Machine tool
– Robotics

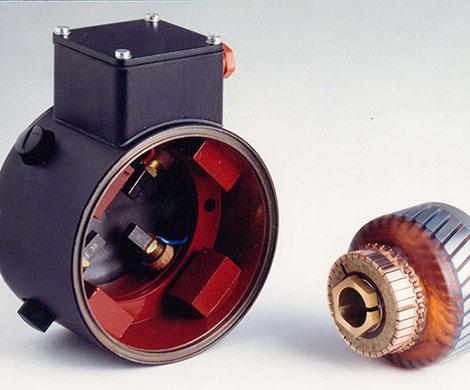

RDC 16

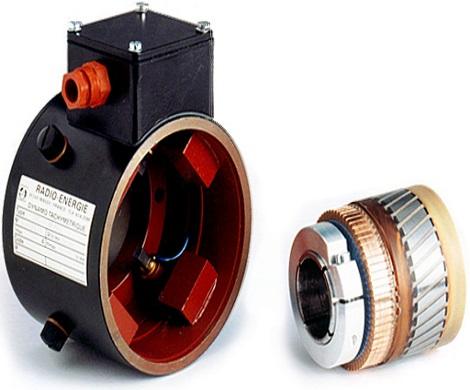

– Tachymetric dynamo composed of rotor/stator (BF)
– Bearing variant is a floating mount blind shaft (MF)
– Large reaming
– Permanent magnet excitation
– E.M.F. 1000 rt/mn: 10V to 60V
– Shaft diameter from 17 to 30mm
– IP44
- Industrial use
RDC 30

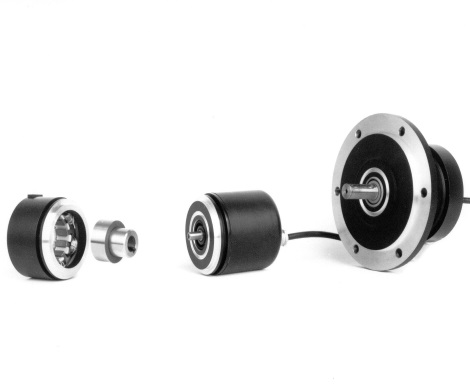

– Umax +/- 10 V
– Speed range 50 – 10000 rt/mn
– Synchro-phased output
– Frequency at 1000 rt/mn 66.6 Hz
– RSB 100 & 112 protection – IP56
– RSB 114 & 144 protection – IP55
– Operating temperature -10°C + 70°C
– Only on request
- Industrial use
– 100 RS (Rotor/Stator)
– 112 RS (Rotor/Stator)
– 114 AS (Frame Mounted)
– 144 AS (Frame Mounted)
RSB

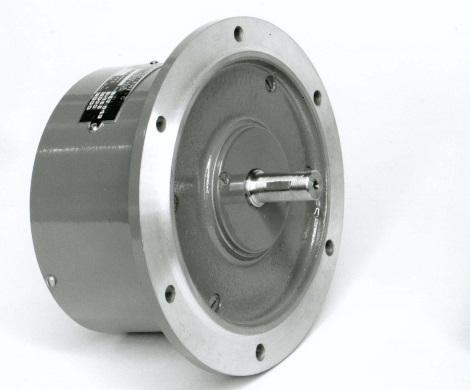

– Homopolar with statoric armature
– Phased winding
– Permanent magnet excitation
– Rotor including modulation poles (with no rings nor brushes)
– E.M.F . 1000 rt/mn 8V
– 100 Hz at 1000 rt/mn
– Flange mounting
– IP33 or IP54
- Metallurgy
RYO 010
– Homopolar with statoric armature
– UK Bobinage monophasé
– Permanent magnet excitation
– Rotor including modulation poles (with no rings nor brushes)
– E.M.F . 1000 rt/mn: 1.7V to 40V
– 100 Hz at 1000 rt/mn
– Flange mounting
– IP32
- Metallurgy
RSYO 615
– Homopolar with statoric armature
– Phased winding
– Permanent magnet excitation
– Rotor including modulation poles (with no rings nor brushes)
– E.M.F . 1000 rt/mn: 17V
– 100 Hz at 1000 rt/mn (RYO 615)
– 250 Hz at 1000 rt/mn (RYO 1515)
– Flange mounting
– IP32
– Only on request
- Metallurgy
RYO 615 & 1515
– Homopolar with statoric armature
– Phased winding
– Permanent magnet excitation
– Rotor including modulation poles (with no rings nor brushes)
– E.M.F . 1000 rt/mn: 50V to 125V
– 200 Hz at 1000 rt/mn (RYO 615)
– Flange mounting
– IP53 or IP55
- Metallurgy

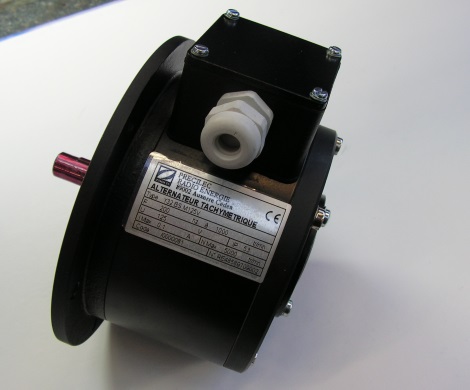

Y 32
– Homopolar with statoric armature
– Monophased or threephased winding
– Permanent magnet excitation
– Rotor including modulation poles (with no rings nor brushes)
– 200, 400, 500 & 1000 Hz at 1000 rt/mn
– Flange mounting
– IP55
- Railway construction
Y1 20 & Y1 32
– Homopolar with statoric armature
– Phased or threephased winding
– Oriented permanent magnet excitation (Ticonal)
– Rotor including modulation poles (with no rings nor brushes)
– E.F.M. at 1000 rt/mn 50V
– 133 1/3 , 400 & 1000 Hz at 1000 rt/mn in 1-
– 133 1/3 , 333 1/3 , 400, 533 1/3 , 666 2/3 & 1000 Hz at 1000 rt/mn in 3-
– Standard flange mounting, normalized flange, and/or fixing tabs
– IP53, IP55
- Paper Mill
Z1

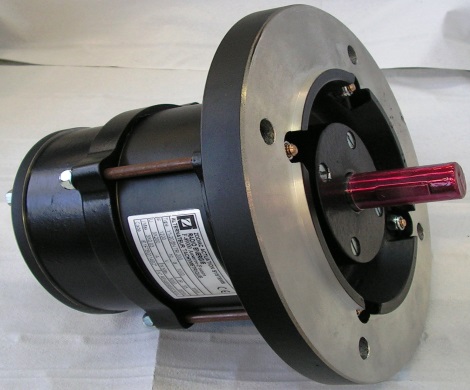

- This sensor allows numerical detection of rotating speed
– Associated with a REO 588 tachymetric Dynamo or higher ranged, such assembly allows to get power provided by the Tachometer, but also low current/high frequency
– Grooved rotor 240 teeth
– E.F.M. at 1000 rt/mn 2V
– 4000 Hz at 1000 rt/mn
– Flange or base mounting
– IP53, IP54
- Industrial use
ROUE PHONIQUE
– Threephased tachymetric alternator, rectifier included
– Designed for current industrial uses
– Only Rotor/stator execution
– E.M.F. 1000 rt/mn 30V to 300V
– IP56
- Industrial use
– Control & Regulation
RAC 12D
