- Ferrite magnets
– Shaft size from 40 to 63
– According to IEC standards
– Voltage from 12 to 150V
– Max speed 5000 rt/mn
– Power from 10 to 700W
– IP44 et IP55
– Construction type B3, B14 or B5
– Insulation Class F
– Heating Class F
– Option: Tachymetric dynamo
– Option: Encoder
– Option: Brake
- Industrial use
A Serie
– Shaft size from 63 to 200
– According to IEC standards
– Speed from 750 to 4000 rt/mn
– Power from 0.05 to 55 kW
– IP23
– Mounting type B3, B5 or B35
– Insulation Class F
– Heating Class F
– Service type S1
– Ambient temperature 40°C
– Option: Tachymetric dynamo
– Option: Encoder
– Option: Brake
– To be defined when ordering: armature voltage, excitation voltage and armature voltage form factor
- Industrial use
– Tough environments
V Serie
– Shaft size from 63 to 200
– According to IEC standards
– Speed from 750 to 3000 rt/mn
– Power from 0.04 to 18kW
– IP44 and IP55
– Mounting type B3, B5 or B35
– Insulation Class F
– Heating Class F
– Service type S1
– Ambient temperature 40°C
– Option: Tachymetric dynamo
– Option: Encoder
– Option: Brake
– To be defined when ordering: armature voltage, excitation voltage and armature voltage form factor
- Industrial use
– Tough environments
F Serie
– Shaft size from 90 to 200
– According to IEC standards
– Speed from 750 to 3000 rt/mn
– Power from 0.22 to 40kW
– IP44 and IP55
– Mounting type B3, B5 or B35
– Insulation Class F
– Heating Class F
– Service type S1
– Ambient temperature 40°C
– Option: Tachymetric dynamo
– Option: Encoder
– Option: Brake
– To be defined when ordering: armature voltage, excitation voltage and armature voltage form factor
- Industrial use
– Tough environments
FV Serie

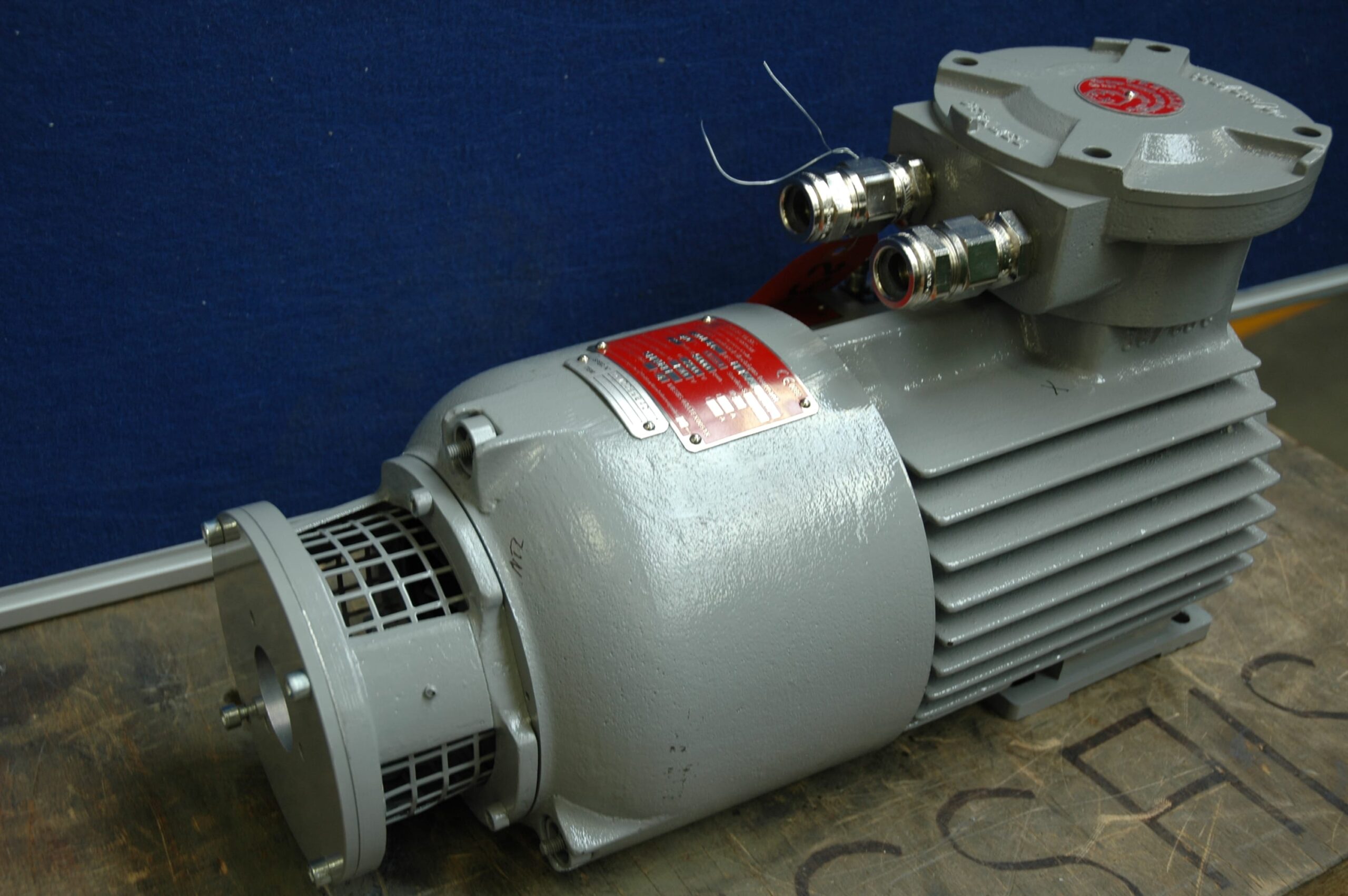

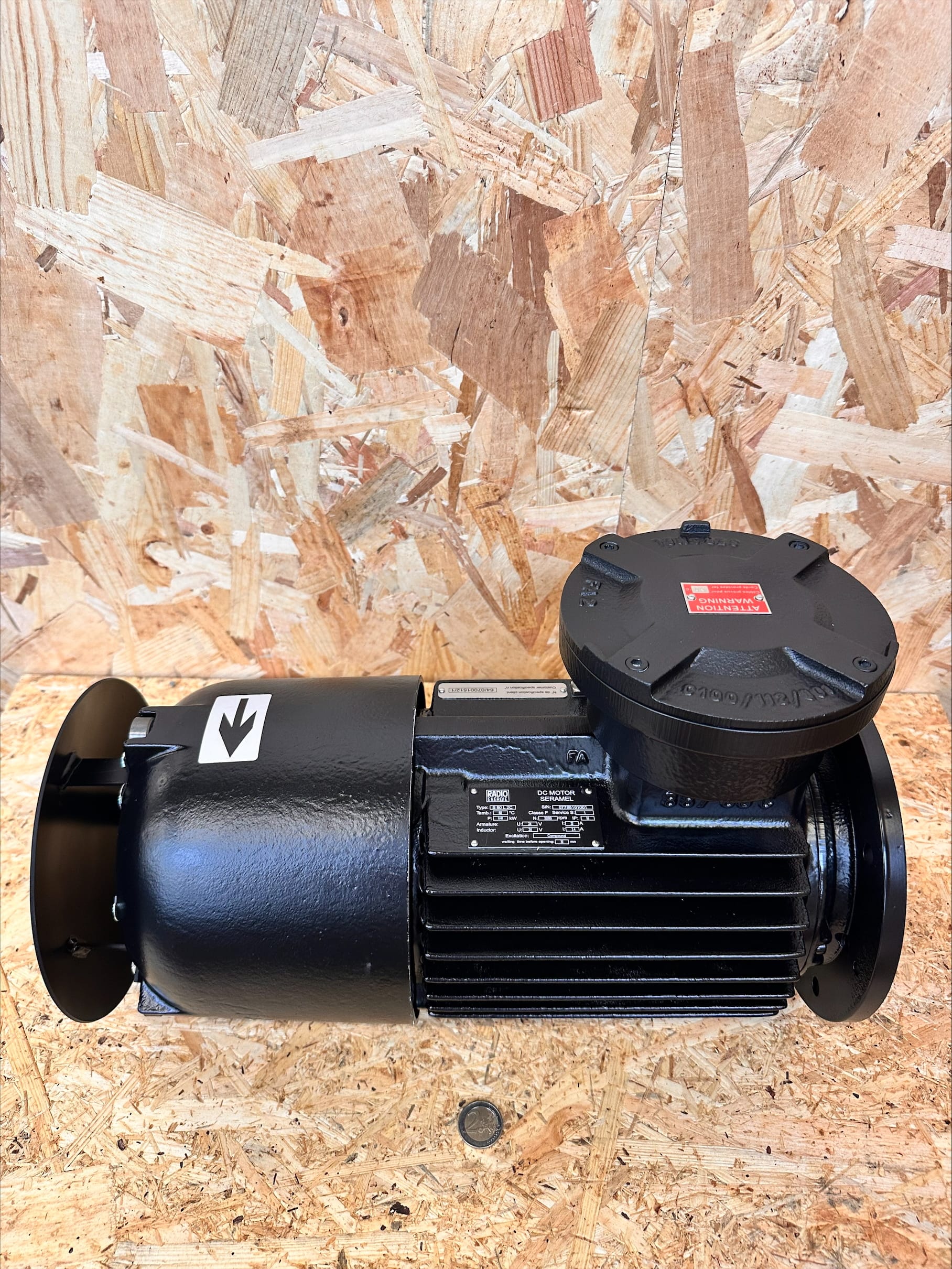

– Our motors are conceived according to CENELEC European standards, and designed to offer safety and reliability high level
– Shaft size from 71 to 160
– Temperature class T4 (135°C) and T5 (100°C)
– Ambient temperature from -20°C to +80°C
– Motor design including compensated poles: 2 or 4
– IP44 and IP55
– Cooling IC 0141
– Cast iron element (except S71 range: Aluminium)
– Mounting type B3, B14, B5, B35 and V1
– Battery power supply: 24V, 48V, 110V and 220V
– Variator power supply: 230V-50Hz or 400V – 50Hz
– Excitation type: separated, shunt, series or compound
– Service type S1
– Form factor: Ff1
– Insulation Class F
– Heating Class F
– Power from 0.130 to 20 kW
- Secured zone
– ATEX certification according to 2014/34/UE directive for ATEX zone use
– Possibility to repair ATEX motors according to Saqr-ATEX
SERAMEL Serie
ITS THREE MAIN PRODUCT LINES ARE:
— Dynamos, tachymetric alternators, digital encoders;
— Direct current motors;

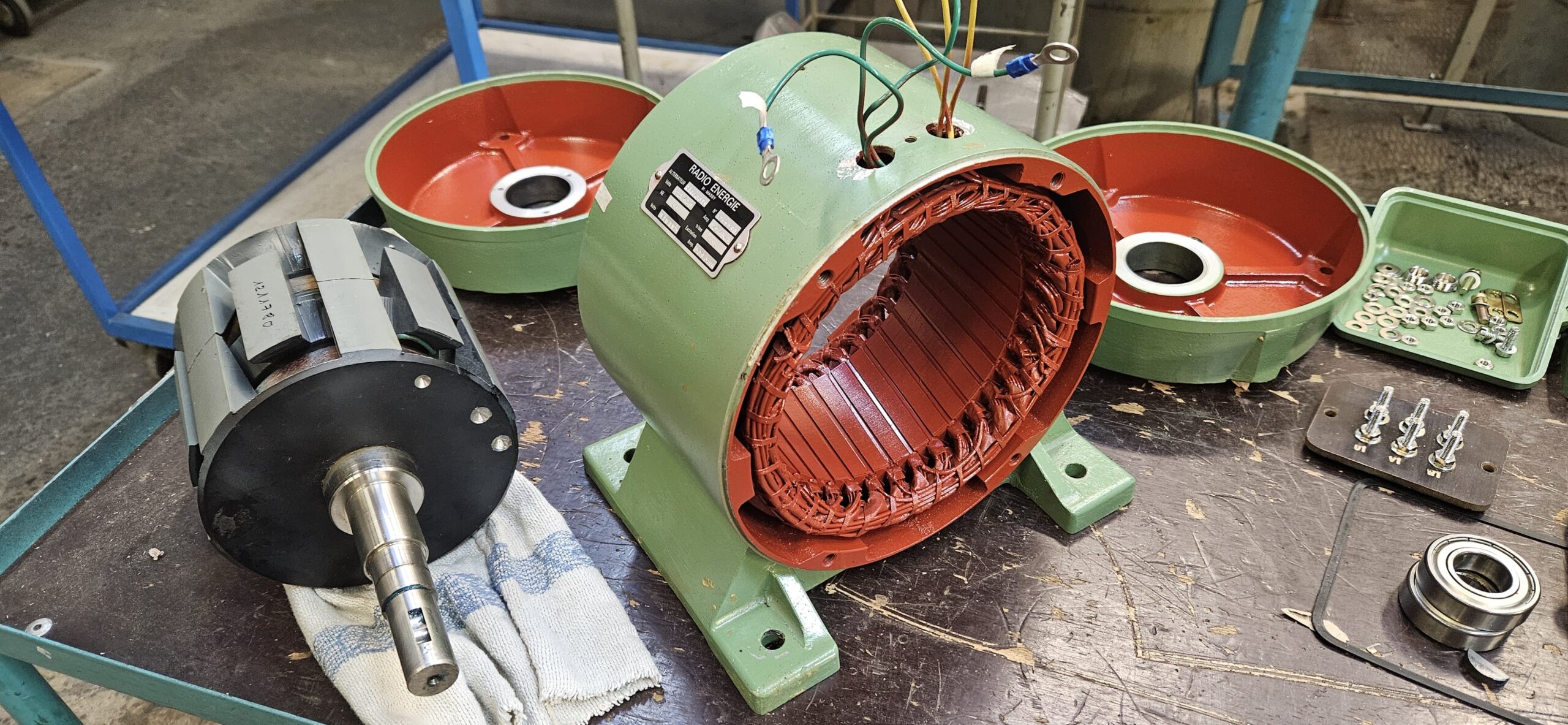

— Permanent magnet generators and alternators (PMG) for various energy applications including wind power.
Radio Energie offers a wide range of speed sensors that equip all types of industrial equipment worldwide (70% for export), such as elevators, lifting cranes, mechanical elevators, rolling mills, material processing industry...
